The powerful universal machine

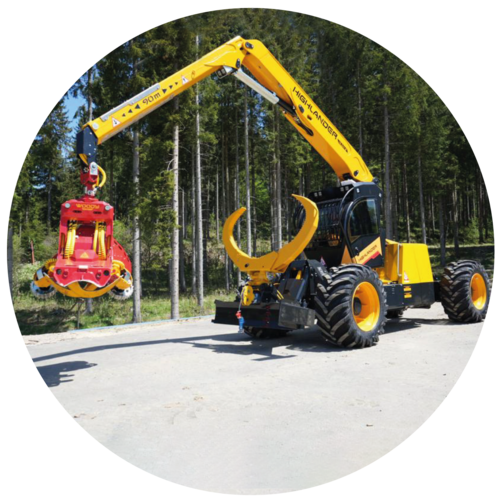

HIGHLANDER HL10-2

The universal machine for processing work on the forest road as well as thinning and skidding work in this field.

Drive type 4x4 Allrad
Power 212 kW
Pulling force 235 kN
Typcial operating weight 22.500 kg ¹)

The powerful universal machine

The HL10-2 convinces with its maneuverability and is just as suitable for thinnings as for final fellings.

Climbing ability is always assured thanks to four-wheel drive with engageable hydraulic differential lock and large drive wheels. The stability as well as the slew moment of the mache is always maintained thanks to automatic level compensation. The short wheelbase combined with 2-wheel-, 4-wheel- and crab steering, makes the HL10-2 extremely manoeuvrable.

Downloads

HIGHLANDER HL10-2

Measurements

HIGHLANDER HL10-2

Technical data

General Information

Typcial operating weight 22500 kg ¹)
Control system KTC 1.0
Harvester units WH50-1, WH60-1

Engine

  Stage V
Motor type FPT 6-cylinder CR
Power (2200 U/min) 212 kW
Torque (1500 U/min) 1160 Nm
Total displacement 6,7 l
Diesel tank capacity 340 l

Crane System

Crane type HL24
Crane lifting torque 240 kNm
Tilt angle +23,6° / -9,5°
Tilt angle incl. wheel rockers +28,0° / -14,0°
Range 10,8 m
Slewing torque 44 kNm
Slewing range 360° (endless)

Chassis

  Front axle Rear axle
Drive Axial piston motor with gearbox
Brake system Multiple-disc brake
Type of steering Front-whee, rear-whee, all-wheel and crab steering
Steering system Steering axle, fixedSingle-wheel steering
Steering angle ²) +27° / -27°
Standard tyres 710 / 70 R34
Pulling force 235 kN
Speed 18 km/h
Axle track 2240 mm
Ground clearance 640 mm

Hydraulic system

Drive pumps axial piston pump, closed oil circuit, pmax 450 bar
Working pump axial piston pump, open oil circuit, pmax 350 bar
Power takeoff pump axial piston pump, open oil circuit, pmax 350 bar
Filling capacity hydraulik oil tank 250 l

Options

Rigging winch RW90-1 max. 80 kN pulling force (adjustable), Cable: Ø13mm / 120 m
Traction winch TW90-1 max. 90 kN pulling force (adjustable), with cable discharger wrap arm, usable as rigging winch, Cable: Ø14mm / 300m
Clam bunk with integrated quick-change system, adjustable pivot and swing brake,
ca. 2 m² loading area

1) Version: traction winch inkl. cable, clam bunk, WH 60-1 , 1/2 tank filling, without chains
2) Without chains
3) Extension: 2500 mm
4) Extension: 2000 mm
5) incl. dozer widening

Optional equipment: In addition to the standard equipment, a broad range of optional equipment is also available. Further information on standard and optional equipment can be obtained from your KONRAD distributor.

The manufacturer reserves the right to make technical modifications and improvements.
